Parlé Presenter Lift: Installation and Pre-Commissioning

This article covers the second phase of a Parlé Presenter Lift (PPL) deployment: the physical installation of equipment and the preliminary software checks before full system tuning. Meticulous execution in this phase is crucial, as improper device placement or orientation can significantly degrade system performance and stability.





Hardware, software, and requirements

Applicable hardware and software

This article applies to the following Biamp hardware and software:

  • Microphones: Parlé TCM-X, Parlé TCM-XA, Parlé TTM-X

  • PoE Amps: AMP-450P, AMP-450BP

  • ProcessorsTesiraFORTE X (and Voltera D and DM products in special cases)

  • Software: Tesira Software 5.4 or newer, Presentation Space Designer

Prerequisites for this PPL step

  • A completed Presentation Space Designer report from the design phase.

  • A project-specific initial Tesira file with the core PPL blocks, as outlined in the design article.

  • All required Biamp hardware on-site.

  • A calibrated SPL meter capable of A-weighted measurements.

  • A tool for measuring RT60 (reverberation time).

  • A reliable laser tape measure.

  • A thorough understanding of the Parlé Presenter Lift: System Overview article.





Section 1: Microphone Installation


Precise microphone placement and orientation are essential for effective beam locking. Be aware the Presentation Space Designer tool becomes part of the commissioning process. Mounting locations of microphones and loudspeakers should match the design but occasionally may be different. The positions of the equipment must be measured from the front left of the room and updated in the web tool.

Physical Placement

  • Install Microphones per Design Layout - Install the Parlé TCM-X, TCM-XA, or TTM-X microphone(s) exactly as specified in the Presentation Space Designer layout. For best performance, this is often directly above the front edge of the defined presentation area.
  • Verify Physical Placement - If the system design utilizes multiple Parlé microphones, use the Locate Devices to identify and correct the installation to match the design placement.


  • Note: This is also an ideal time to update the device host names to help identify their location in the space (e.g. TCM-X-Instructor Desk).



Physical Orientation

  • Establish Physical Orientation - The microphone must be oriented correctly relative to the room. The small Biamp logo on the microphone indicates the 0° azimuth. This logo should be pointed toward "room south" or typically facing away from the main presentation screen or front wall.

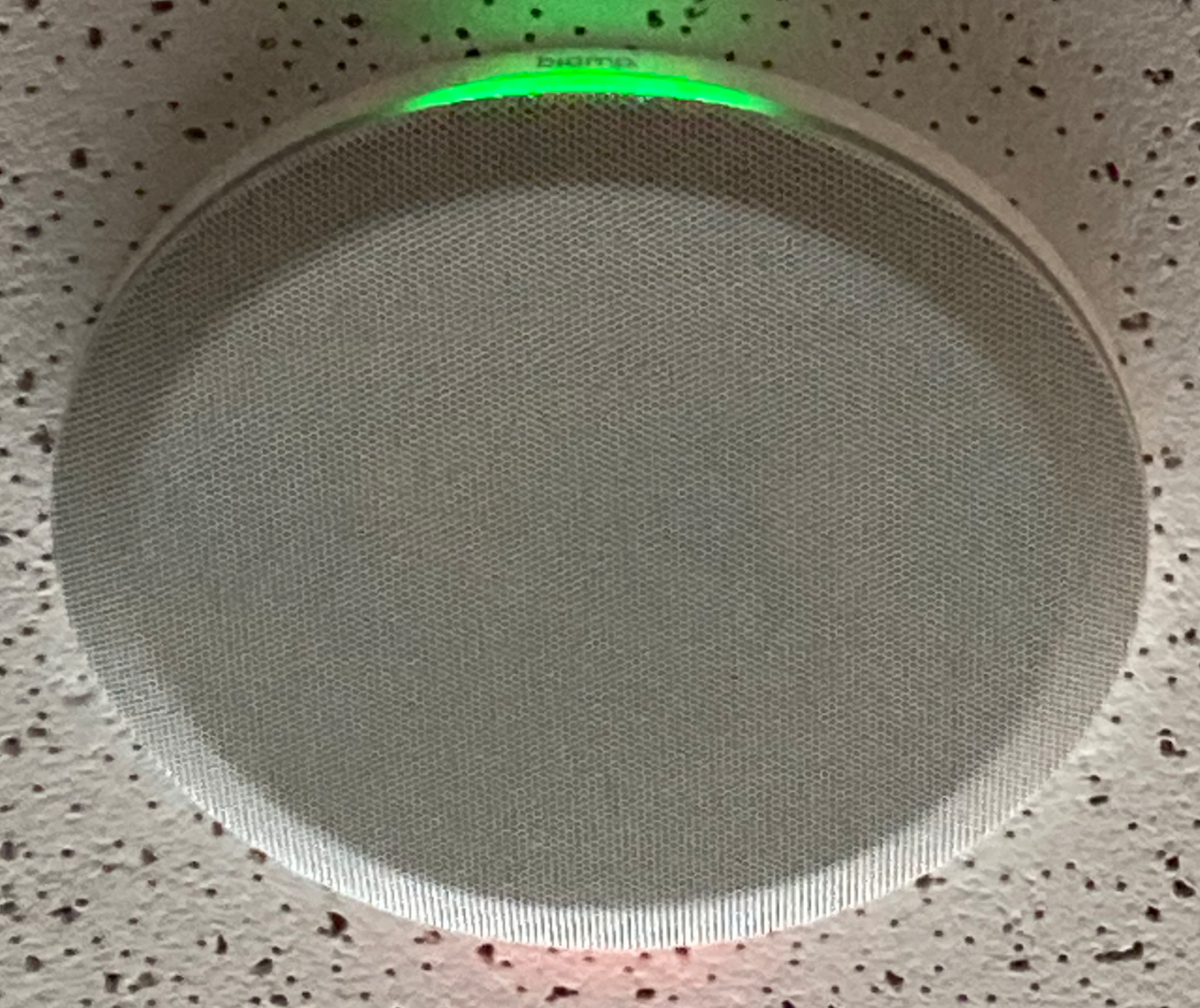

  • Verify Orientation from Software - Use the Orient Mics option in the Parlé block control dialog. This will display a red and green LED on the physical microphone array that aligns with the default red and green zones shown in the software.
    • Green = Biamp Logo = 0° azimuth = Faces "room south"
    • Red = 180° azimuth = Faces "room north/screen"
































clipboard_e8ac8a9d650e15993dfcf85517711430d.png     clipboard_e8f571b9aa2baf3aa9fc98899230e4366.png





















Section 2: Loudspeaker Installation


Correct loudspeaker placement, zoning, and wiring are critical for gain mapping to function properly.

Physical Placement

  • Install Loudspeakers - Install loudspeakers according to the design plan.
  • Update the Design with Measured Locations - Since Presentation Space Designer becomes part of the commissioning process, mounting locations of each loudspeaker should be measured from the front wall and left wall of the room, and updated in the web tool.
  • Adjust Placement in the Tool - As the user moves the loudspeaker in the web tool, the distance from each respective wall is shown in real time. Move the loudspeaker to match the measured dimensions in the actual room.


  • Verify Coverage and Microphone Spacing - Ensure that coverage is focused tightly on the audience seating areas while keeping a 6 ft. offset from the nearest microphones.
  • Verify Speaker-to-Amplifier Wiring - If the system design utilizes multiple Parlé amplifiers or AMP-450 PoE amps, use the Locate Devices to identify and correct the installation to match the design placement. This is convenient as it will play channel-specific audio tracks to help identify which loudspeaker is wired to which amplifier channel.


  • Note: This is also an ideal time to update the device host names to help identify their location in the space (ie. TCM-XA-Instructor Desk, AMP-450BP-Row-1).

Verify Wiring

  • Verify Channel Assignments - Double-check that each loudspeaker zone is wired to the correct amplifier channel as defined in the system design. This may have already been accomplished with the Verify Speaker-to-Amplifier Wiring step in the above section.
  • Note: An error here (e.g., swapping the wiring for the front and back rows) will make proper gain shading impossible.





Section 3: Pre-Commissioning in Tesira Software


Once sections 1 and 2 have been completed, the newly host-named hardware will need to be matched to the preliminary Tesira design file using Tesira software.

  • Initial System and File Preparation
  1. With the preliminary design file open, open the Equipment Table and assign the host-named devices to match the needs of the file.
  2. Once complete, load the file to the system.
  3. Open the Parlé Mic block's control dialog.
    • In the LED Ring Mode dialog, select Orient Mics to verify location and orientation are correct.
    • Be sure to save and export the Presentation Space Designer once all device locations match the physical installation.
    • Use the recommended beam aiming information to lock and aim the Parlé beams.
      • It's typically worth saving these aimed beams in a preset.
  4. Moving on to loudspeakers and PoE amplifiers:
  • Set Initial Amplifier Levels - Open all amplifier blocks and attenuate them to -12 dB.




  • Verify Wiring and Signal Path - Use the Noise Generator and the "Test & Correct Speaker Router" to verify output path, amp, and wiring are as designed. Correct if necessary. If corrections are made in this router, it will be worth saving a preset.




  • Calibrate Speaker Output Levels - During this process, follow the guidance in the above image (and written below) and the SPL meter to set each loudspeaker output to a measured ~74 dBA.
    1. Attenuate amp stage by 12dB.
    2. Use Noise Gen. at 12dB to identify each loudspeaker.
    3. Measure with SPL meter and adjust amp stage gain to achieve ~74dBA slow.
    4. Set the router crosspoint for proper row/speaker alignment.
    5. Methodically step through all loudspeakers.
      • Optional:  You may want to save a preset to capture these routes and be sure the amp blocks are fixed in unit so things don't shuffle.
