Text-to-Speech web interface

This article explains how to navigate the web-based interface for triggering Text-to-Speech announcements on a Vocia TTS-1(e), TTS-1nc(e), or TTS-2.



Navigating the interface

1. Navigate to the IP address of the processor using any standard web browser, and you'll have access to the web interface.<




2. Log in with the credentials of a VTP User (a how-to article covering creating a VTP User and configuring the Text-to-Speech announcements can be found here).

  • Although many individual VTP User accounts can be created, all users are presented with the same options for available paging Sequences and associated Zone routing.

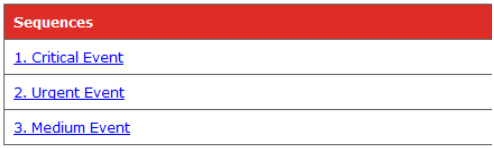

3. A list of available Sequences is presented once the credentials used are authenticated.




4. After selecting a desired Sequence, its comprising Elements will be shown.

  • Any Element shown in blue can be edited, whether it’s a dropdown list or a dynamic text Element.




5. If the critical event is a ‘security breach’ instead of a ‘fire’, select the blue ‘fire’ hyperlink using the dropdown.




6. Use the Update button to lock in the desired Element.

  • The Sequence is constructed. Use the Submit button to begin the message playback.
