Tesira Text Protocol subscriptions

Tesira's subscription feature allows for an automatic response to be sent from a Tesira server when a state change occurs to a specified DSP block. This allows a control system to be aware of the system status at all times without needing to continuously query DSP blocks for their values.

The state or the value of the DSP block will be returned when a subscription is first created. After this initial response, subsequent messaging is suppressed until such time as the state of that block changes. Multiple subscriptions can be defined within a single Tesira system, and therefore a user-defined Custom Label should be assigned to each one. The Custom Label will then act as a unique identifier for the DSP block providing the data updates.

Refer here for the list of DSP Blocks and attributes that support the TTP Subscription service.

Sessions

TTP can be used over Secure Shell (SSH), Telnet or RS-232 Serial connections. Multiple sessions to a single server can be created, however, subscriptions are session based, meaning that the subscription will only be available to the session that initiated it.  If that session goes away or is disconnected, then the subscription is lost and must be re-established.

Command formatting

Instance Tag Command Attribute Index Index Value
MyLevel1 subscribe level 1 MyLevelCustomLabel 500

Instance Tag: Identifies the DSP block to monitor for state changes

Command: Will either be ‘subscribe’ or ‘unsubscribe’ depending whether the Subscription is being added or removed

Attribute: Addresses the specific element to subscribe to within the DSP block being monitored

[Index]: Indicates the desired channel number to subscribe to within the DSP block being monitored.  A value here may or may not be required, depending on the DSP block type and attribute being referenced

[Index]: Is used to assign a Custom Label to the subscription. The label indicates to the control system which DSP block is providing the state change

[Value]: Can be used to specify a minimum rate of responses to the control system so the control processor does not get overrun. This value is specified in milliseconds and should be used especially for DSP blocks that generate a lot of data, for example an RMS or Peak Meter. A subscription update will be provided immediately after a state change, however subsequent updates will never be provided more frequently than this number of milliseconds.  This value is optional and can be left out if not needed.


Responses

All Subscription responses are preceded by a ! “publishToken” statement when using TTP in Verbose Mode (default mode) *. This is to indicate to the control system that the returned packet is from a subscription response, not just a reply to a singular command. Using the TTP subscription example command above, the responses would look like this:

MyLevel1 subscribe level 1 MyCustomLabel 500
! “publishToken”:”MyLevelCustomLabel” “value”:-100.000000
! “publishToken”:”MyLevelCustomLabel” “value”:-98.099998
! “publishToken”:”MyLevelCustomLabel” “value”:-77.800003


The responses above show the subscription to a single channel. If a multi-channel DSP object is used, by changing the attribute field, multiple channels can be made to report within one response.  Note that this example subscribes to the "levels" parameter rather than the "level" parameter.

MyLevel1 subscribe levels MyCustomLabel 500
! “publishToken”:”MyLevelCustomLabel” “value”:[-100.000000 0.000000  4.000000 -12.000000]
! “publishToken”:”MyLevelCustomLabel” “value”:[ -98.099998  0.000000  4.000000 -12.000000]
! “publishToken”:”MyLevelCustomLabel” “value”:[ -77.800003  0.000000  4.000000 -12.000000]

Subscriptions are lost when the Tesira server is rebooted however they can be recreated by subscribing to the same block at regular intervals. Ensure that the same Custom Label is used in the re-subscription otherwise multiple sessions to the same object may be inadvertently opened. Consideration should be given to buffer sizes to make sure all of the subscribed responses can be processed by the control system. If a Subscription is no longer needed an ‘unsubscribe’ command can be issued to reduce the load on the control processor.

* If non-verbose responses are required, the mode should be changed before any subscriptions are made. The response type for each subscription is fixed according to the mode that was active at the time the subscription was made.

Examples

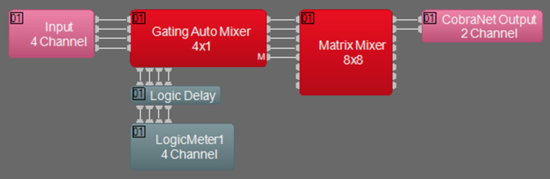

Camera tracking example


Instance Tag Command Attribute Index Index Value
LogicMeter1 subscribe state 1 LogicStateCH1 600
LogicMeter1 subscribe state 2 LogicStateCH2 600
1 Welcome to the Tesira Text Protocol Server...
2
3 LogicMeter1 subscribe state 1 LogicStateCH1 600
4 ! "publishToken":"LogicStateCH1" "value":false +OK
5
6 LogicMeter1 subscribe state 2 LogicStateCH2 600
7 ! "publishToken":"LogicStateCH2" "value":false +OK
8
9 ! "publishToken":"LogicStateCH1" "value":true
10 ! "publishToken":"LogicStateCH1" "value":false
11 ! "publishToken":"LogicStateCH2" "value":true
12 ! "publishToken":"LogicStateCH1" "value":true
13 ! "publishToken":"LogicStateCH1" "value":false
14 ! "publishToken":"LogicStateCH1" "value":true
15 ! "publishToken":"LogicStateCH1" "value":true
16 ! "publishToken":"LogicStateCH2" "value":false

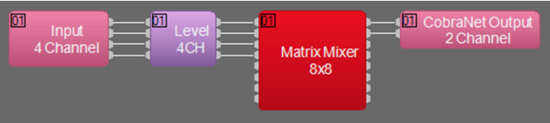

Monitoring level changes example


Instance Tag Command Attribute Index Index Value
Level4CH subscribe level 1 MyLevel4CH1 500
Level4CH subscribe levels <not required> MyLevel4ALL 500
1 Welcome to the Tesira Text Protocol Server...
2
3 Level4CH subscribe level 1 MyLevel4CH1 500
4 ! "publishToken":"MyLevel4CH1" "value":6.000000 +OK
5
6 ! "publishToken":"MyLevel4CH1" "value":3.300000
7 ! "publishToken":"MyLevel4CH1" "value":4.300000
8 ! "publishToken":"MyLevel4CH1" "value":5.200000
9 ! "publishToken":"MyLevel4CH1" "value":5.700000
10
11 Level4CH subscribe levels MyLevel4ALL 500
12 ! "publishToken":"MyLevel4ALL" "value":[5.200000 3.000000 -10.000000 -70.000000] +OK
13
14 ! "publishToken":"MyLevel4ALL" "value":[5.200000 3.000000 -10.000000 -60.000000]
15 ! "publishToken":"MyLevel4ALL" "value":[5.200000 3.000000 -5.000000 -60.000000]
16 ! "publishToken":"MyLevel4ALL" "value":[5.200000 3.000000 -3.000000 -60.000000]

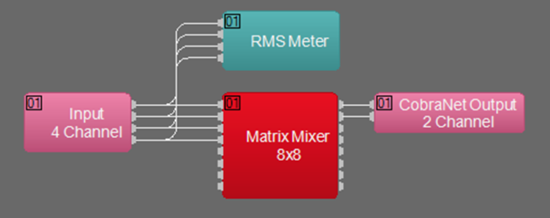

Meter subscription example


Instance Tag Command Attribute Index Index Value
AudioMeter11 subscribe level 1 MeterCH1 500
1 Welcome to the Tesira Text Protocol Server...
2
3 AudioMeter11 subscribe level 1 MeterCH1 500
4 ! "publishToken":"MeterCH1" "value":-79.996880 +OK
5
6 ! "publishToken":"MeterCH1" "value":-79.996857
7 ! "publishToken":"MeterCH1" "value":-81.009888
8 ! "publishToken":"MeterCH1" "value":-83.010132
9 ! "publishToken":"MeterCH1" "value":-78.010574
10 ! "publishToken":"MeterCH1" "value":-56.011780
11 ! "publishToken":"MeterCH1" "value":-47.022346
12 ! "publishToken":"MeterCH1" "value":-43.021805

Call Progress for telephone interfaces example


Instance Tag Command Attribute Index Index Value
VoIPControlStatus1 subscribe callState <not required> VoIP_PHL1 1500
1 Welcome to the Tesira Text Protocol Server...
2
3 VoIPControlStatus1 subscribe callState VoIP_PHL1 1500
4 ! "publishToken":" VoIP_PHL1" "value":{"callStateInfo":[{"state":VOIP_CALL_STATE_RINGBACK "lineId":0 "callId":0 "action":UI_DISPLAY_STATUS "cid":"\"07131038\"\"146\"\"\"" "prompt":VOIP_PROMPT_CONNECTING} {"state":VOIP_CALL_STATE_IDLE "lineId":0 "callId":1 "action": UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_NONE} {"state":VOIP_CALL_STATE_IDLE "lineId":0 "callId":2 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_NONE} {"state":VOIP_CALL_STATE_IDLE "lineId":0 "callId":3 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_NONE} {"state":VOIP_CALL_STATE_IDLE "lineId":0 "callId":4 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_NONE} {"state":VOIP_CALL_STATE_IDLE "lineId":0 "callId":5 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_NONE} {"state":VOIP_CALL_STATE_INIT "lineId":1 "callId":0 "action":UI_DISPLAY_STATUS "cid":"" "prompt":VOIP_PROMPT_SIP_USER_NOT_CONFIGURED} {"state":VOIP_CALL_STATE_INIT "lineId":1 "callId":1 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_SIP_USER_NOT_CONFIGURED} {"state":VOIP_CALL_STATE_INIT "lineId":1 "callId":2 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_SIP_USER_NOT_CONFIGURED} {"state":VOIP_CALL_STATE_INIT "lineId":1 "callId":3 "action":UI_CLEAR_STATUS"cid":"" "prompt":VOIP_PROMPT_SIP_USER_NOT_CONFIGURED} {"state":VOIP_CALL_STATE_INIT "lineId":1 "callId":4 "action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_SIP_USER_NOT_CONFIGURED} {"state":VOIP_CALL_STATE_INIT "lineId":1 "callId":5"action":UI_CLEAR_STATUS "cid":"" "prompt":VOIP_PROMPT_SIP_USER_NOT_CONFIGURED}]} +OK
