Qt X System installation guide

This article summarizes Qt X cabling and emitter guidelines for use as a convenient online reference as well as answering high-level questions related to zone run limits, cable types, and distances.

The full installation and operations guide goes into greater detail on these topics and can be found here: Qt X Installation-Operation Guide






System size limits

The upper limits on Qt X devices and zones in a single system as of the September 2022 firmware release:

  • 55 Qt X Devices in a system. This includes any combination of Qt X 300, 600, 800, and 805 controllers, both standard AVB or "D" Dante versions.
  • 440 Total zones in a Qt X system file
  • 110 Paging zones (paging will be enabled in a future feature firmware release)





Installation considerations



Qt X 300 and 600 systems

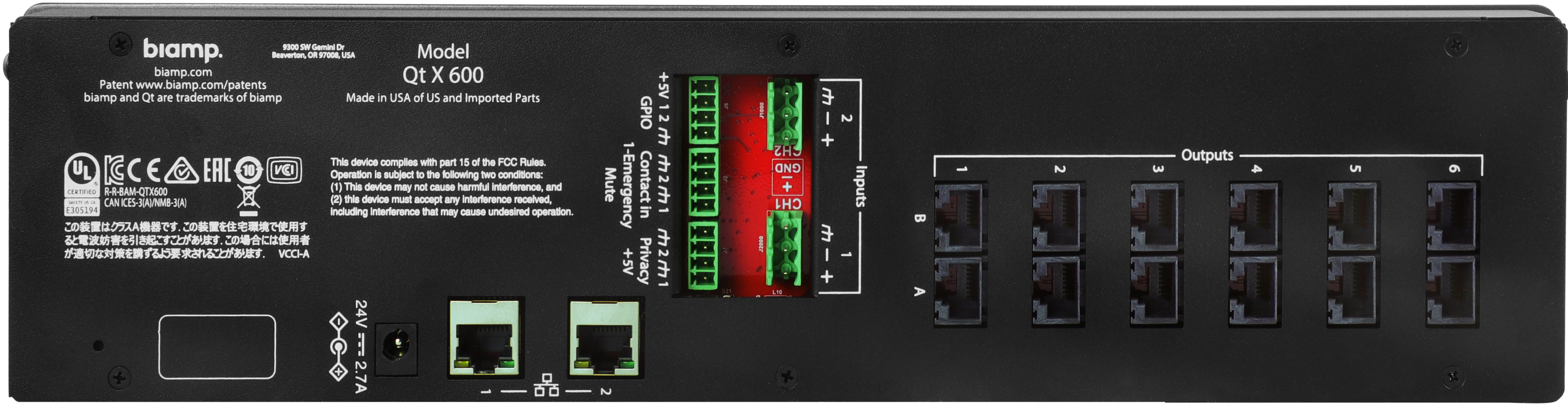

          QTX 600 Back_sRGB.png

  • Output runs must have the same device type (Standard or Active Emitters) and will share the same sound masking settings. The cabling runs must be configured to prevent any signal interference among the 4 channels along the layout.
  • Differences in ceiling height of more than 6" (152mm) need to be connected as separate outputs because sound masking levels will be different.
  • Each output's sound masking levels can be individually controlled and then assigned to networked zones with additional controls applied to the
    whole zone.



Qt X 800 and 805 systems

            QT X 800

           QT X 805

  • Each Qt X 800/805 controller has eight (8) outputs. Class 2 speaker output runs are limited to single* 4Ω and 8Ω speakers (DS1357, DS1398) or DS1320 active emitters.
  • The Qt X 805/805D has an additional set of 8 line level outputs (mirroring the Class 2 outputs) that can be connected to amplifiers to run DS1339/ DS1390 70V sound masking loudspeakers.
  • The Qt X 800/800D is designed for installation in the plenum space and requires a PoE+ power supply (not included) for operation. The Qt X 805/805D is a rack-mounted unit and comes with a power supply.
  • Since the controllers are networked, multiple outputs sharing the same environmental, area, and sound masking characteristics can be combined in the same zone, which can then be configured in the software or via the onboard web interface.

*Note: Two DS1357 or DS1398 speakers may be daisy-chained on a single output for specific coverage scenarios but are not able to be controlled/tuned individually in this instance.





Wiring and Cabling



Qt X 300 and 600

Cabling for Active and Passive emitters is included in designated lengths (16, 22, or 30 feet) depending on the emitter bundle ordered.

Sort the cables by length and label by output and run for installation ease. If you need to make a custom-length cable, please note the following:

  • Use solid conductor 24 AWG CAT-3, 5, 5e, 6, or 7 cable that meets local code requirements.
  • If the system is installed in a return air plenum, the cable must be plenum rated.
  • Shielding is not required. Unshielded twisted pair (UTP) cable is acceptable.
  • Snagless boots are not required.
  • RJ-45 plugs must use the “bent 3-tine” RJ-45 plugs intended for use with solid core CAT wire. Three-tine plugs can be purchased at a hardware store and from most CAT cable suppliers. DO NOT USE the “aligned two-tine” type intended for stranded wire, as they provide improper contact and may yield intermittent system operation. The diagram shows the cross-section view of both types.
  • Field test each cable after fabrication with the RJ-45 connectors (before final installation), with a standard network LAN tester to check for continuity, shorts, and 1:1 (straight through) connection before installation.
  • Factory Cables are terminated using EIA/TIA568B standard pinout.



Qt X 800 and 805

Loudspeaker connections from QtX800/805 controllers are facilitated with 18 gauge two conductor stranded audio cable for runs up to 40' (12.2m) in length and 16 gauge two conductor stranded audio cable for runs up to 55' ( 16.8m) in length. Ensure all cabling meets local building code requirements.







Emitter Installation - Qt X 300s and 600 models



Emitter Types

Passive


The Qt Passive passive emitter is a passive audio loudspeaker device suitable for sound masking applications. This emitter receives an amplified signal directly from the Qt X control module via a UTP category cabling infrastructure. Maximum sound pressure levels with this type of emitter are 60dBA at 1 meter with a sound masking frequency response of 200Hz to 6.3kHz.

Active


The Qt active emitter is a self-powered audio loudspeaker device suitable for sound masking, paging, background music. This emitter contains an internal amplifier that receives the audio signal directly from the Qt X controller in addition to a direct current voltage that powers the active emitter. Both power supply(s) and power injectors are required for operation in addition to the Qt X. Maximum sound pressure levels with this type of emitter are 65dBA @ 1 meter with a sound masking frequency response of 125Hz to 8kHz. Maximum sound pressure levels for paging and background music are 74dBA @ 1 meter with a frequency response of 105Hz to 16kHz.

Each cable run has a maximum length of 1000 ft (305m).



Emitter quantities

The tables that follow give the number of emitters that may be installed in a given cable run, output, etc. per Qt X device. Each output has two identical runs (A and B). The emitters in both output runs are controlled equally and must be of the same emitter type.

Qt X 300/300D - Emitter Installation Totals
Emitter Type  Per Cable Run Per Output Total (3 Outputs)*
Standard 60 120 360
Active 50 100 300

IMPORTANT: Do not mix emitter types in the same output.

Qt X 600/600D - Emitter Installation Totals
Emitter Type  Per Cable Run Per Output Total (3 Outputs)*
Standard  60 120 720
Active                               50 100 600

* Output total assumes the same emitter type in each output. Total emitter counts will vary per device if both standard and active emitters are present in a system.

  • Active and passive emitters are installed identically. On the passive emitters, the input and output ports are labeled as such: INPUT, OUTPUT. It is critically important that the emitters are wired and or located following the layout and wiring diagram from the Design Team to prevent any signal interference.
  • A hole saw bit is included with Qt X 300/600 models for ceiling tile or drywall installation. A hole size of 2.5" (64mm) is required for both passive and active emitters.

NOTE: For Active Emitters, a Qt Power Injector (purchased separately) will need to be installed directly adjacent to the first emitter. Each output on the power injector can power up to 25 Active Emitters (up to 50 for each cable run). A Qt Power Supply (also purchased separately) is necessary to power the injectors and can power up to six (6) Qt power injectors.



Standard and Active Emitter Spacing

Emitter
Mounting Height*
Emitter Spacing - 2'x2' ACT, Open or Solid-Surface Ceilings Emitter Spacing -
2'x4' ACT Ceilings
Min Distance from Wall or
Obstacle
Max Distance from Wall or Obstacle
< 8' – 9' (2.4 2.8m) 8' x 8' (2.4 x 2.4 m) 8' x 8' (2.4 x 2.4 m) 2' ( .6 m) 4' (1.2 m)
9' – 10' (2..8 – 3.1 m) 10' x 10' ( 3.1 x 3.1 m) 10' x 8' ( 3.1 x 2.4m) 2' ( .6 m) 5' (1.5 m)
10' – 11' (3.1 – 3.4 m) 10' x 10' ( 3.1 x 3.1 m) 10' x 8' ( 3.1 x 2.4m) 2' ( .6 m) 5' (1.5 m)
11' – 12' (3.4 – 3.7 m) 12' x 12'( 3.7 x 3.7 m) 12' x 12' ( 3.7 x 3.7 m) 2' ( .6 m) 6' (1.8 m)
12' – 14' (3.7 – 4.3 m) 12' x 12' ( 3.7 x 3.7 m) 12' x 12' ( 3.7 x 3.7 m) 2' ( .6 m) 6' (1.8 m)
14' + (4.3 m+) Contact Biamp Support Contact Biamp Support 2' ( .6 m) 7' (2.1 m)

*Mounting height may not always be at the ceiling height

NOTE: Emitter type selection must be made on an output-by-output basis using the web user interface or the Qt X software. Passive emitters are the default
type for the Qt X 300/600 models. Do not mix emitter types in the same output.





Speaker Installation - Qt X 800 and 805



Speakers Types

The DS1357 and DS1398 models are indirect 8 Ohm loudspeakers.

  • The DS1357 is designed to be suspended by a central wire in open ceilings.
  • The DS1398 can be installed under floor or over ceiling tiles.

These speakers can be daisy-chained with another speaker of the same model type for a maximum of 2 per output. Most designs will just call for a single speaker per output.

The DS1320 is an active emitter with a 2-wire connection and can be installed in drop ceilings. The maximum cable distance for each (DS1320) output is 55 ft (16.8 m) when using 16 AWG wire.



DS1357 Installation

  1. DS1357-660x330.jpg Run 2-conductor wires from the controller to each speaker location.

  2.  Install the speaker at the designated height by suspending it with a steel cable (installer supplied) from the center eyebolt. Each speaker should be installed at the same height (from the floor), consistent with the other DS1357 speakers in the space.
  3.  Connect the conductors from the speaker lead matching the positive and negative conductors to the home run cable and secure with approved connectors. The signal cable must have enough slack to keep it from acting as part of the device suspension.
  4.  Once the system is powered with the output assigned to a zone and configured, the signal intensity may be further adjusted using the Qt X software or web interface.



DS1398 Installation

  1. The speaker may be installed in select raised access floor systems or in shallow ceiling plenums. An optional mounting bridge is availaDS1398_angled-650x395.jpgble for use in plenums where other sound masking speakers aren't feasible. Please contact the Sound Masking Design team for specific information on use in under-floor systems.
  2. Run 2-conductor wires from the controller to each speaker location.
  3. Remove the plate to access the speaker lead. Run the incoming cable through the strain relief and connect the conductors matching the positive and negative conductors to the home run cable. Secure connections with approved connectors and tuck them back into the opening. Reattach the cover.
  4. Once the system is powered with the output assigned to a zone and configured, the signal intensity may be further adjusted using the Qt X software or web interface.



DS1320 Installation

  1. Run 2-conductor wires from the controller to each speaker location.
  2. This emitter can be installed in a ceiling tile the same way as the Qt Active emitter but must use a 2-wire connection fromTING7898-824x500.jpg the controller. The RJ45 jacks and internal amplifier is disabled. The ceiling tile should have a hole cut in the center of the tile.
  3.  The emitter can be pushed through the front of the tile and secured with the knob. Strip and secure the incoming cable conductors in the euroblock connector. Plug the connector into the jack in the rear of the emitter.
  4.  Once the system is powered with the output assigned to a zone and configured, the signal intensity may be further adjusted using the software or web interface.
